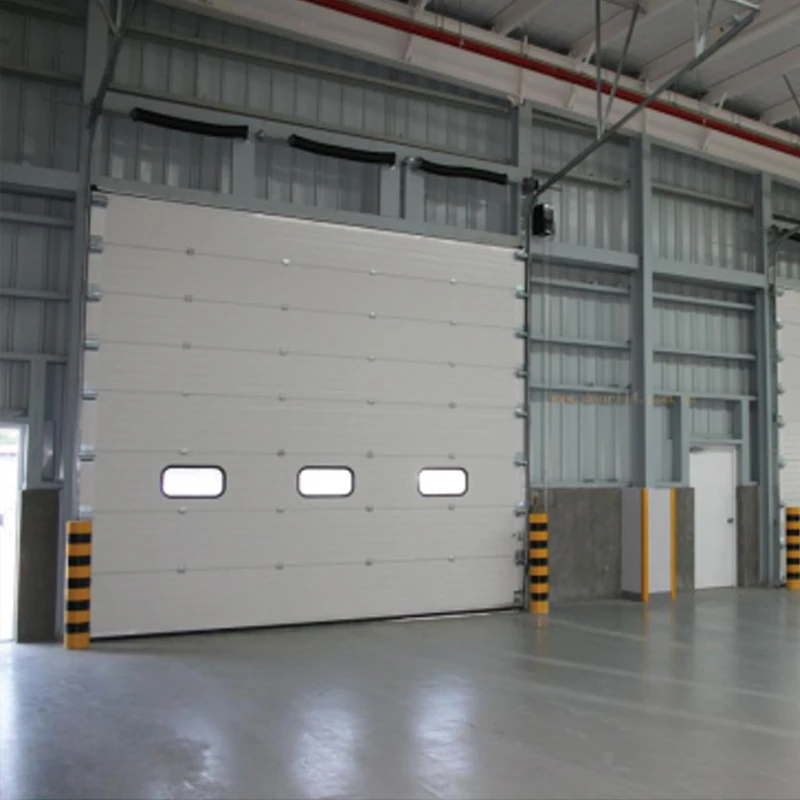

Model 011 Industrial Sectional Overhead Door
The Model 011 Industrial Sectional Overhead Door is engineered for warehouses, logistics distribution centers, manufacturing facilities, and commercial buildings requiring robust security, dependable thermal insulation, and versatile architectural configurations.
Manufactured with high-density polyurethane (PU) insulated sandwich panels (available in 42 mm, 50 mm, and 75 mm thicknesses), Model 011 delivers superior thermal performance ( U=1.0 W/(m²⋅K) on steel panels) while maintaining an operational noise level of ≤55 dB(A). Tested to European industrial standards for wind resistance (Class 2/3), water permeability (Class 3), and air tightness (Class 3), this sectional door accommodates clear openings up to 9,000 mm (W) × 9,000 mm (H) and supports customized integration with pedestrian wicket doors, full-vision panoramic panels, and multiple automated actuation devices.
Key Engineering Features
- Multi-Thickness Thermal Insulated Panels
- Available in 42 mm, 50 mm, and 75 mm panel thicknesses with high-density CFC-free polyurethane cores. Achieves a verified thermal transmittance of
- 1.0 W/(m²⋅K) (tested on a 5,000 mm×5,000 mm steel door), significantly lowering facility heating and cooling costs.
- Certified European Standard Environmental Protection
- Delivers Class 3 Water Permeability (EN 12425) and Class 3 Air Permeability (EN 12426) on solid panel configurations. Structural reinforcing profiles ensure Class 3 Wind Load Resistance (EN 12424) for widths <4,250 mm (Class 2 for widths >4,250 mm or configurations with integrated wicket doors).
- Low-Noise Electric Drive with Manual Chain Override
- Driven by high-efficiency industrial gear motors (500W / 650W / 800W options) operating at a quiet sound level of ≤55 dB(A). In the event of a power outage, an integrated heavy-duty manual chain hoist allows manual operation without disengaging the balance system.
- Integrated 900 mm Pedestrian Wicket Door (Optional)
- Features an optional 900 mm wide built-in pass door with a standard 180 mm reinforced threshold, continuous perimeter seals, and heavy-duty structural profiles, allowing personnel access without opening the full sectional door.
- Modular Vision & Full-Panoramic Glazing
- Available with anti-tamper rectangular or oval acrylic windows, or fully glazed anodized aluminum framed sections (single or double acrylic/polycarbonate, clear, frosted, or tinted options) to maximize natural light transmission.
- Wide Ambient Temperature Tolerance
- Engineered to operate reliably across extreme industrial climates from −30°C to +75°C with an IP54 electrical enclosure rating.
European Standard EN Performance Ratings
Performance characteristics tested in accordance with harmonized European standards:
| Performance Characteristic | Test Standard | Test Result / Performance Rating |
| Thermal Transmittance (U-Value) | EN 12428 | 1.0 W/(m²⋅K) (Measured on 5,000×5,000 mm steel panel) |
| Wind Load Resistance | EN 12424 | Class 3 (Width <4,250 mm, without wicket door)<br>Class 2 (Width >4,250 mm or with wicket door)* |
| Water Permeability | EN 12425 | Class 3 (Without wicket door) |
| Air Permeability | EN 12426 | Class 3 (Without wicket door) |
| Operational Noise Level | Acoustic Testing | ≤55 dB(A) |
| Electrical Ingress Protection | IEC 60529 | IP54 |
*Note: Higher customized wind load reinforcement profiles are available upon engineering request.
Technical Specifications
| Parameter / Component | Specification |
| Max. Clear Opening Dimensions | 9,000 mm (W) × 9,000 mm (H) (Custom sizing available) |
| Panel Thickness Options | 42 mm / 50 mm / 75 mm |
| Core Insulation Material | High-density Polyurethane (PU) foam with continuous weather seals |

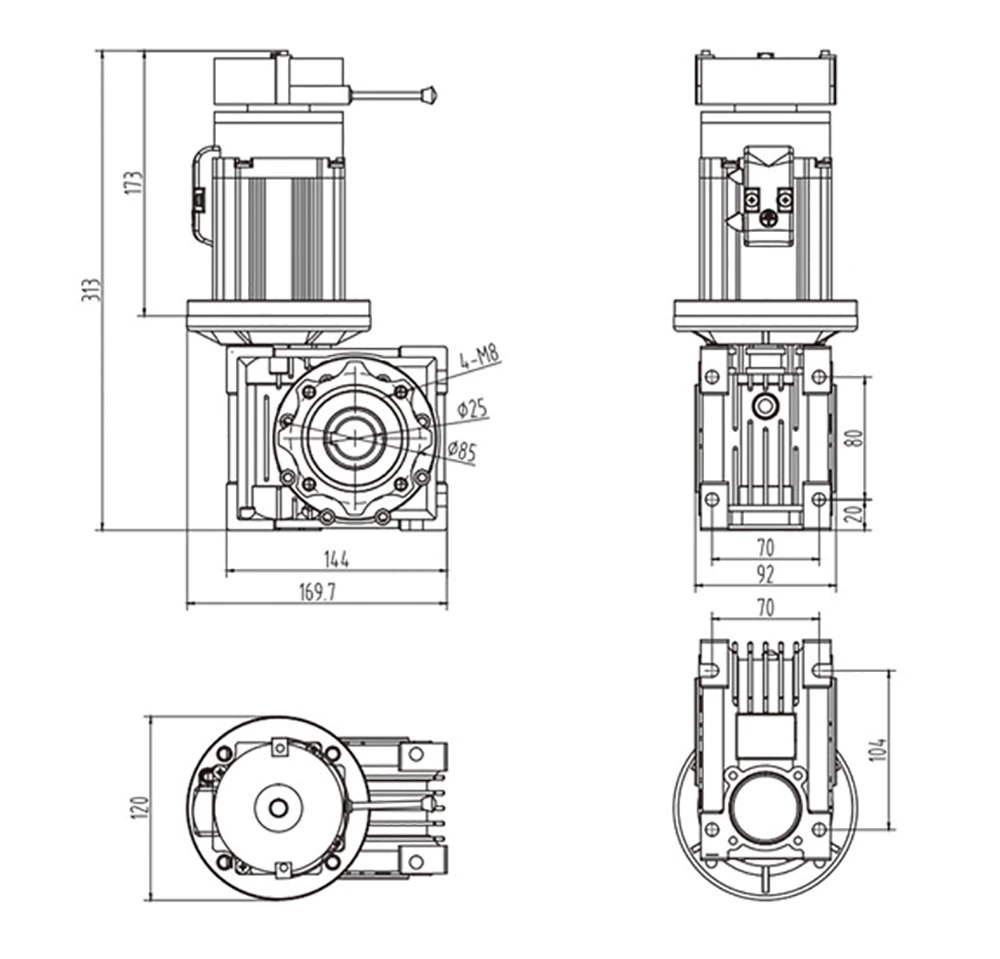

| Motor Drive Options | Industrial Servo Baojiu / Baisheng / Pioneer / Del |
| Drive Power Options | 500W / 650W / 800W (Configured to door weight and dimensions) |
| Power Supply Voltage | Single-Phase 220V / Three-Phase 380V, 50–60 Hz |
| Operating Temperature Range | −30°C to +75°C |
| Operation Modes | Motorized electric drive + Manual emergency chain hoist |
| Standard Safety Devices | 1. Cable-break safety devices<br>2. Spring-break safety devices<br>3. Bottom safety edge / In-track photocells |
| Optional Pass Door | Width: 900 mm | Standard threshold height: 180 mm |

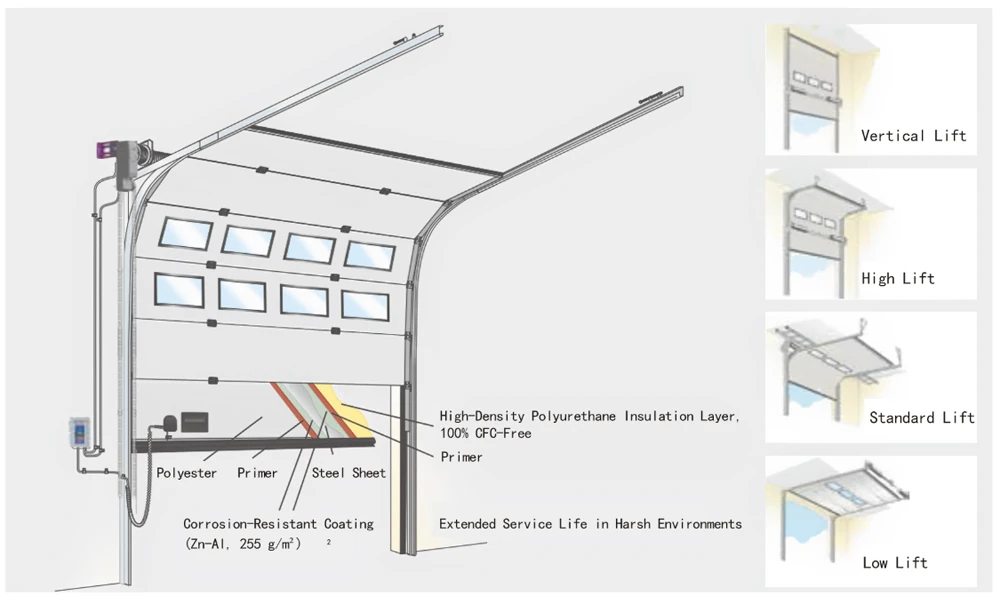

Dimensions and Required Space
Panel Color Options (RAL Standard)
Model 011 panels feature durable, weather-resistant polyester coil coatings:
- Exterior Standard Colors:
- Red (RAL 3002)
- Signal Blue (RAL 5010)
- White Aluminum Grey (RAL 9006)
- Light Grey (RAL 7035)
- Pebble Grey (RAL 7032)
- Pure White (RAL 9010)
- Interior Standard Color:
- Off-White / Grey-White (RAL 9002)
- Custom RAL factory spray finishes available upon request.
Access Control & Activation Options
Model 011 integrates with multiple manual and automated control devices:
- Pushbutton Stations: Standard Open / Close / Stop wall consoles with emergency stop switches.
- Pull Cord Switches: Overhead pull switches for forklift traffic.
- Remote Control (RF): Long-range wireless transmitters.
- Magnetic Floor Loops: Sub-surface vehicle induction loops for hands-free vehicle detection.
- Photocell Sensors: Through-beam optical safety beams to prevent closure on obstacles.
- Microwave Radar Sensors: Adjustable motion sensors for automated approach detection.
Industrial Applications
- Logistics Hubs & Distribution Warehouses: Loading docks and exterior dispatch portals requiring thermal retention and heavy cycle capacity.
- Automotive Dealerships & Service Centers: Workshop access doors equipped with full-vision panoramic glazing for display and natural illumination.
- Manufacturing & Assembly Facilities: Factory perimeter doors and internal departmental partitions.
- Cold-Chain & Food Processing Facilities: Exterior dock doors equipped with 75 mm panels to minimize refrigeration loss.
Frequently Asked Questions (FAQ)
A: When configured with polyurethane insulated steel sandwich panels, Model 011 achieves a thermal transmittance (U-value) of1.0 W/(m²⋅K) tested on a standard 5,000 mm×5,000 mm door. Panels are available in 42 mm, 50 mm, and 75 mm thicknesses to match specific climate and energy-saving requirements.
A: The door includes a built-in heavy-duty manual chain hoist attached directly to the drive motor. Operators can raise or lower the door smoothly by pulling the chain, without needing to disengage the torsion counterbalance springs.
A: The integrated pass door has a clear passage width of 900 mm and a standard 180 mm threshold. It is built with perimeter rubber seals and structural reinforcing aluminum profiles to ensure smooth operation, weather resistance, and Class 2 wind load performance.
A: Yes. Individual sectional panels can be replaced with full-vision anodized aluminum frames fitted with single or double acrylic or polycarbonate glazing (available in clear, frosted, or tinted variants) with built-in anti-tamper security profiles.
A: The precision drive system and balanced roller hinges operate with a verified acoustic output of ≤55 dB(A), ensuring quiet performance suitable for industrial and commercial environments where low noise levels are required.
